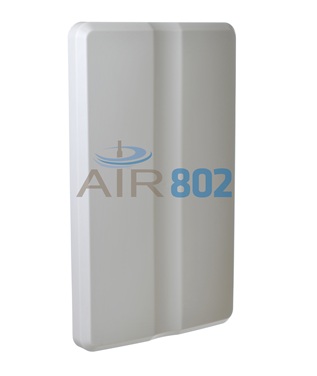

AIR802® model ANPAN245X14 is a dual-band panel antenna covering the 2400 to 2500 and 5150 to 5185 MHz bands with 14 dBi gain. This antenna is commonly used in 802.11n wi-fi applications.
Especificaciones
|
Frequency |
2.4 and 5.1 to 5.8 GHz |
|
Gain |
2 x 14 dBi 2400 to 2500 MHz (2.4 GHz) 2 x 14 dBi 5150 to 5850 MHz (5.1 to 5.8 GHz) |
|
VSWR |
≤ 1.5 (2.4 GHz) and ≤ 2.0 (5.1 to 5.8 GHz) |
|
Vertical Beam Width |
15° at 2400 to 2500 MHz 15° at 5150 to 5850 MHz |
|
Horizontal Beam Width |
65° at 2400 MHz 65° at 5150 to 5850 MHz |
|
Polarization |
±45° |
|
Isolation |
≥ 28 dB |
|
F/B Ratio |
≥ 25 dB |
|
Impedance |
50Ω |
|
Max. Input Power |
50 watts |
|
Weight |
2.2 lbs (1 kg) |
|
Dimensions |
15.7 x 9.4 x 1.3 inches (400 x 240 x 35 mm) |
|
Connector |
4 x N Jack-Female |
|
Mast Mounting Dimensions |
1.5 to 2 inches (40 to 50 mm) |
|
RoHS Compliant |
Yes |
