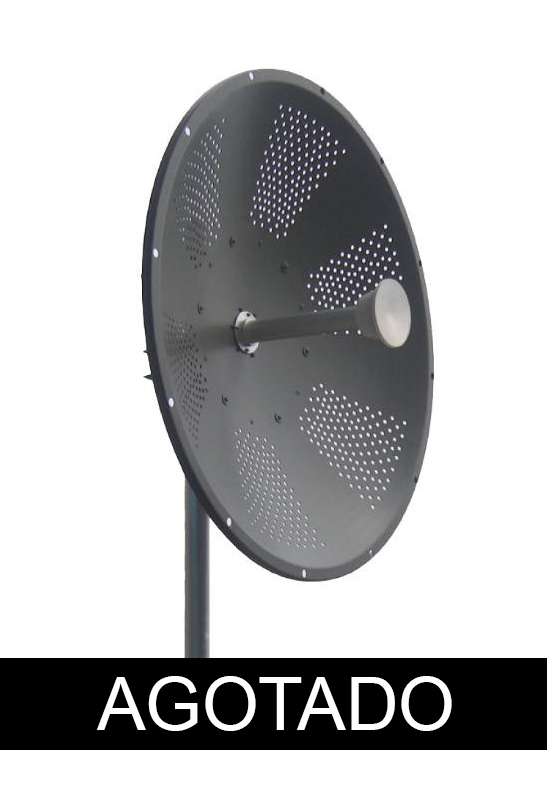

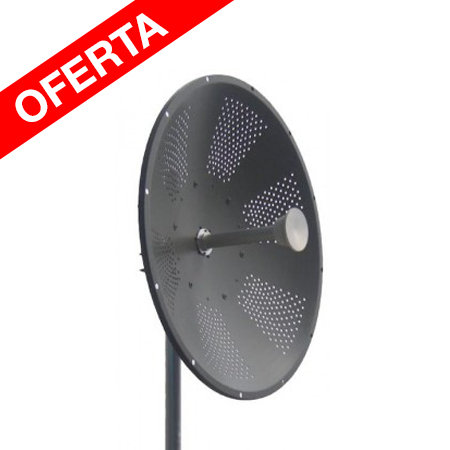

Antena Parabolica 32 dBi, 5.1 - 5.8 Ghz Polaridad Dual.
Imprimir
Descargar Manual
Aplicaciones
• 802.11a Wi-Fi Networks
• 802.11n Wi-Fi Networks
• 802.11n Wi-Fi Networks
• U-NII / ISM Band
• Streaming Wireless Video
• Point-to-Point Links
• Wireless Backhaul
• Streaming Wireless Video
• Point-to-Point Links
• Wireless Backhaul
Especificaciones
| Frequency | 5150 - 5850 MHz |
| Gain | 32 dBi |
| Beamwidth |
3.5° Vertical
3.5° Horizontal
|
| VSWR | ≤ 1.5 |
| F/B Ratio | ≥ 40dB |
| Impedance | 50 ohm |
| Polarization | Dual Polarization (2 N-Female Connectors) |
| Max. Input Power | 100 watts |
| Connector Type | N-female |
| Lightning Protection | DC Short |
| Dimension | 0.9 meters (35.4 inches) |
| Weight | 10.5 Kg (22 lbs) |
| Lightning Protection | DC Short |
| Mounting Dimension | 50 to 75 mm (1.9 to 2.9 inches) diameter mast max. |
| Temperature | -40° F to 185° F (-40° to 85° C) |
| RoHS Compliant | Yes |
