Detalle
Utilizado para insertar, extraer y testear voltaje.
Especificaciones

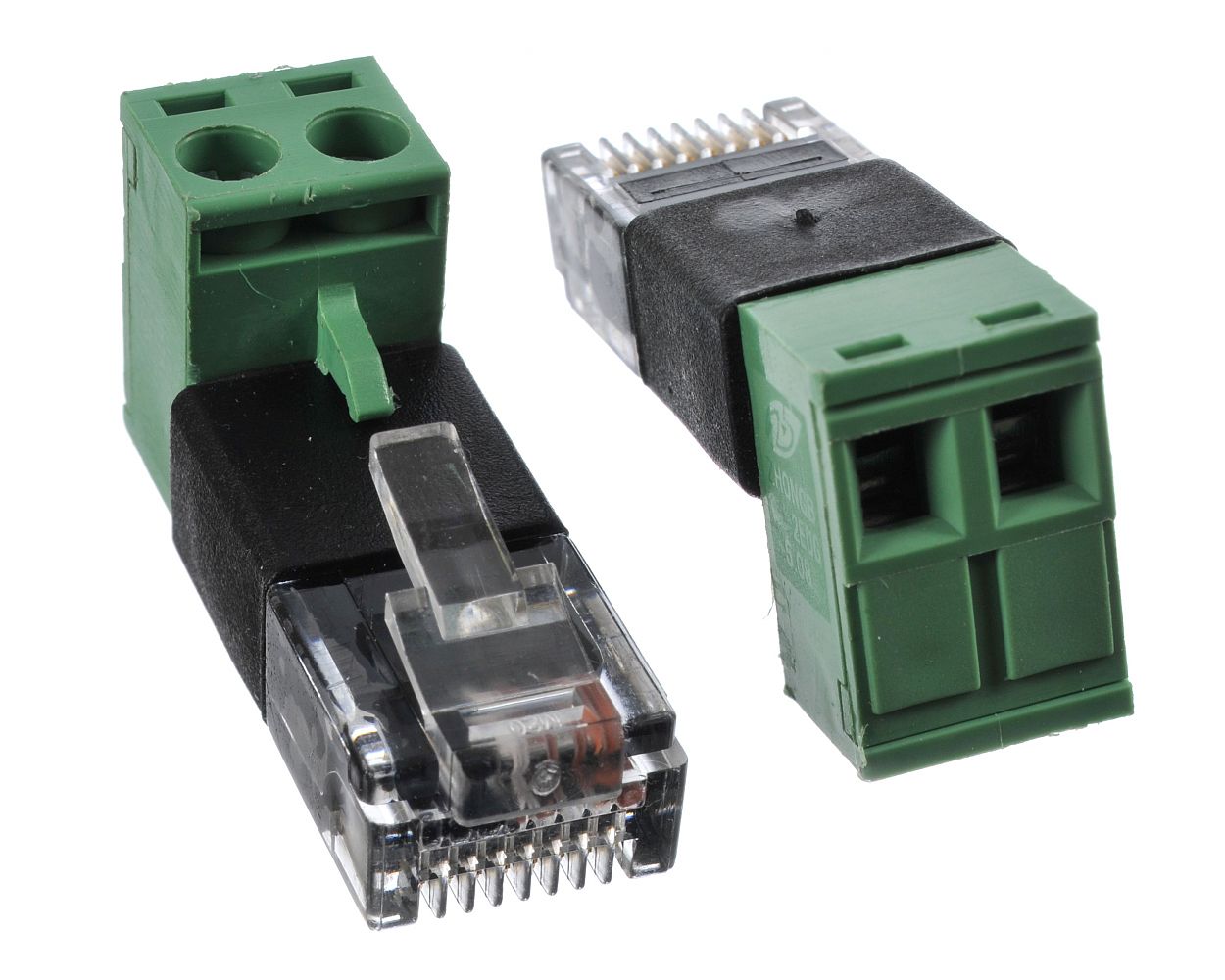

This adapter is useful for voltage extraction, insertion or testing from a 10/100 Mbps interface with PoE utilization on the unused data pins (4,5,7,8). This is for Mode B 10/100 interfaces where the voltage always is on and flowing. It facilitates accessing the voltage from a PoE device,whether a switch, mid-span injector, DC-DC converter with PoE, or passive PoE devices. It is not for use with IEEE 802.3af devices that require resistive change from the powered device to the power source prior to voltage flowing.
| Pin | Symbol | Description |
| 1 | NC | No Connection |
| 2 | NC | No Connection |
| 3 | NC | No Connection |
| 4 | +Vdc | DC Power (+) |
| 5 | +Vdc | DC Power (+) |
| 6 | NC | No Connection |
| 7 | -Vdc | DC Power (-) |
| 8 | -Vdc | DC Power (-) |
| Maximum Wire Size | 12 awg |
| Maximum Current | 2A |
| StorageTemperature | -40 to +80°C (-40 to 176°F) |
| Operating Temperature | -40 to +70°C (-40 to 158°F) |
| Relative Humidity | 5 to 90% non-condensing |
| Dimensions | 32 x 13 x 15 mm (1.25 x 0.5 x 0.6") |
| Weight | 5 grams (0.2 oz) |
| RoHS | Compliant |
